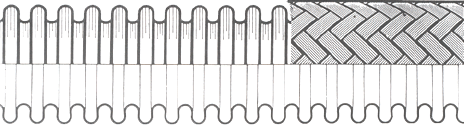

Corrugated Hoses Back
Specifications

Corrugated hoses,metal hoses flexible metal hoses,corrugated hoses,corrugated metal tubes,Flexible metallic hose assemblies Exporters Manufacturers India

SINGLE BRAID



Nominal Bore

 inch                      mm

Maximum Working Pressure

lb/in²
Bar

Maximum test Pressure

lb/in²
Bar

Minimum Bending Radius MBR

mm+10%

1/4 6 2300 / 160 3450 / 240 3.5 / 89
3/8 10 2000 / 138 3000 / 207 3.75 / 95
1/2 13 1500 / 103 2250 / 154 4 / 102
3/4 19 900 / 62 1350 / 92 5 / 127
1 25 750 / 52 1125 / 78 6 / 152
1¼ 32 600 / 42 900 / 62 7 / 178
1½ 38 550 / 38 825 / 57 10 / 254
2 51 500 / 34 750 / 51 14 / 356
2½ 64 450 / 31 675 / 46 18 / 457
3 76 400 / 27 600 / 42 20 / 508
4 102 250 / 17 375 / 25 24 / 610
5 127 230 / 16 350 / 24 29 / 737
6 152 145 / 10 220 / 15 35 / 890
8 200 90 / 6 135 / 9 39 / 980

DOUBLE BRAID

Nominal Bore

inch                 mm

Maximum Working Pressure

lb/in²
Bar

Maximum test Pressure

lb/in²
Bar

Minimum Bending Radius MBR

mm+10%

1/4 6 4000 / 275 6000 / 412 3.5 / 89
3/8 10 3200 / 221 4800 / 331 3.75 / 95
1/2 13 2550 / 176 3800 / 261 4 / 102
3/4 19 1600 / 10 2400 / 165 5 / 127
1 25 1300 / 90 1950 / 135 6 / 152
1¼ 32 1000 / 69 1500 / 103 7 / 178
1½ 38 750 / 52 1125 / 76 10 / 254
2 51 700 / 48 1050 / 73 14 / 356
2½ 64 600 / 41 900 / 62 18 / 457
3 76 550 / 38 825 / 57 20 / 508
4 102 300 / 20 450 / 30 24 / 610
5 127 280 / 19 420 / 28 29 / 737
6 152 220 / 15 325 / 22 35 / 890
8 200 145 / 10 220 / 15 39 / 980
Corrugated hoses, metal hoses flexible metal hoses, corrugated hoses, corrugated metal tubes, Flexible metallic hose assemblies Exporters Manufacturers India Back
